Cooled Conservatories at Gardens by the Bay. Wilkinson Eyre Architects

WAF Entry2012
AwardWorld Architecture Festival 2012 - World Building of the Year

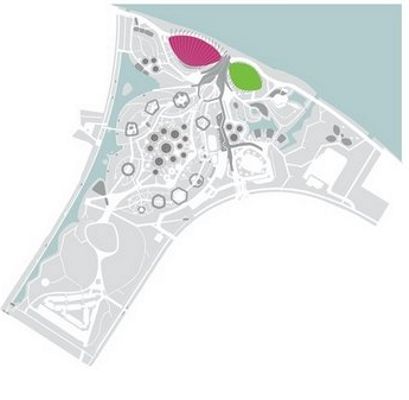

Located in Marina Bay, Gardens by the Bay is a key project in delivering the Singapore
Government’s vision of transforming Singapore into a ‘City in a Garden’. At a total of 101 hectares, the Gardens by the Bay project comprises three distinct waterfront gardens – Bay South, Bay East and Bay Central. The commission to design the 54 hectare Bay South garden was won in 2006 by a team led by Grant Associates and including Wilkinson Eyre Architects, Atelier One, Atelier Ten, Land Design and Davis Langdon and Seah.

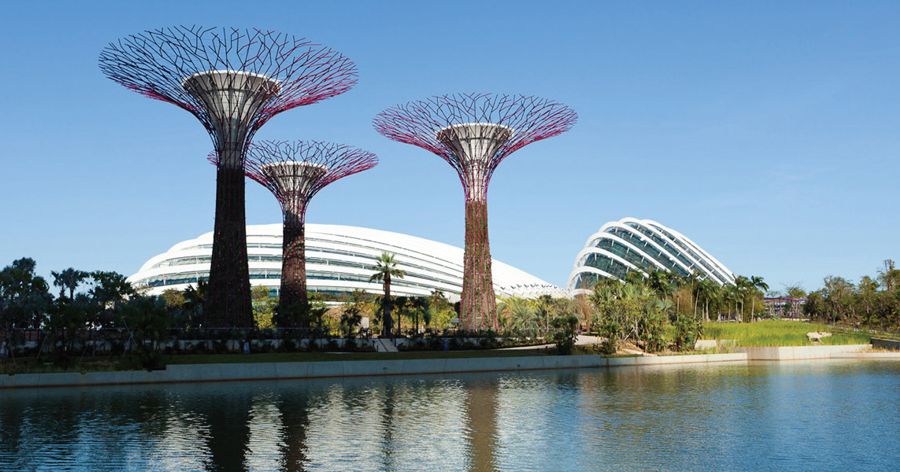

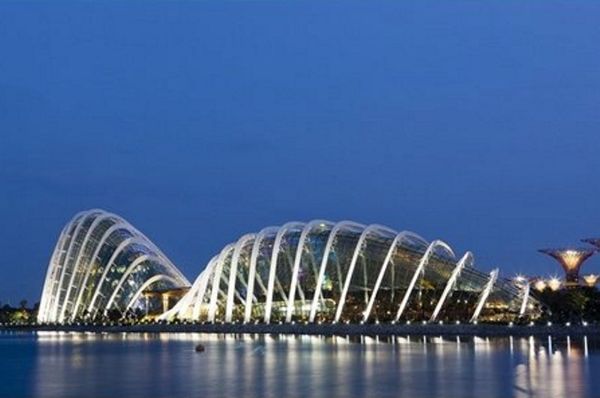

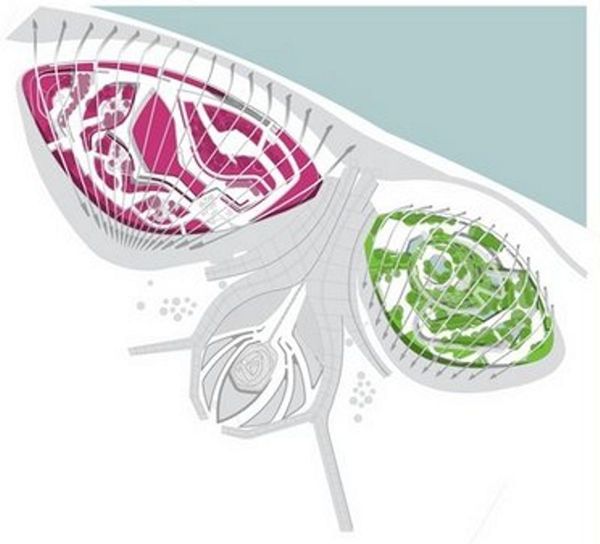

At the heart of Bay South Garden is the Cooled Conservatory Complex which is the focal point of the Gardens. The two main Conservatories cover an area in excess of 20,000sq m and are among the largest climate-controlled glasshouses in the world. They provide a spectacular, all-weather
attraction and comprise a 1.28 hectare cool dry conservatory (the ‘Flower Dome’) and a 0.73 hectare cool moist conservatory (the ‘Cloud Forest’). Each has its own distinct character, but both explore the horticulture of those environments most likely to be affected by climate change.

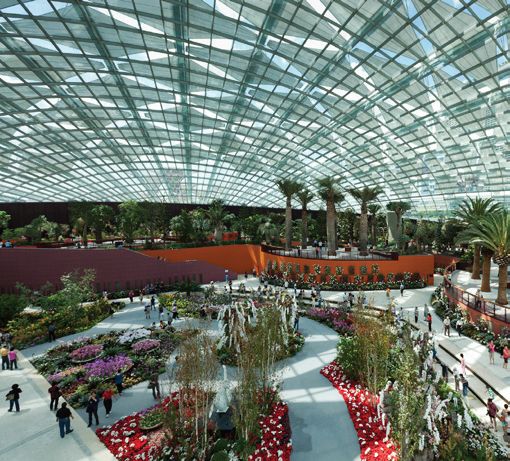

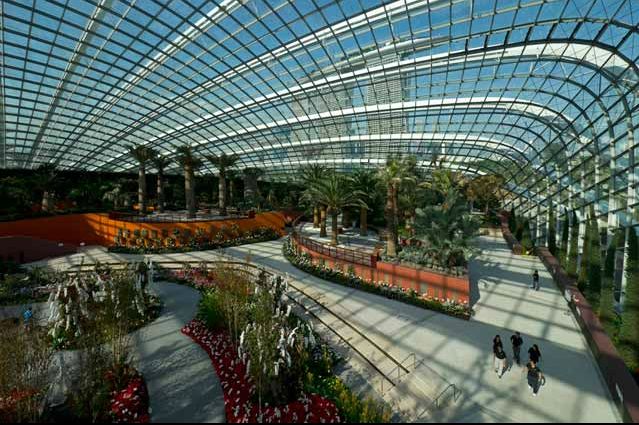

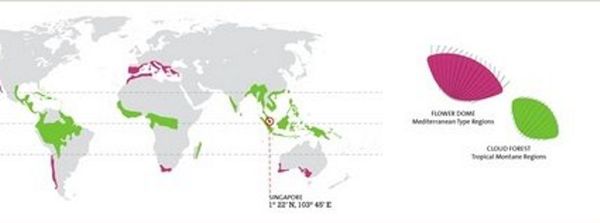

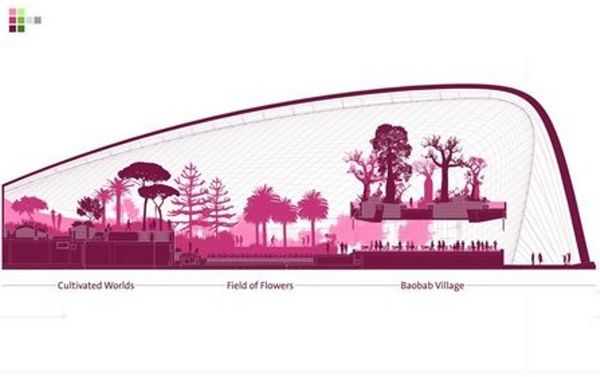

The Flower Dome tells the story of plants and people in the Mediterranean climate zone, and how the plants cultivated in these regions will gradually become endangered as temperatures rise. It has a planted footprint of more than 10,100 sq m and aims to bring alive the experience of seasonal change for visitors more used to Singapore’s eternally tropical climate and lush green vegetation. From the lavender fields and olive groves of the Cultivated Worlds section to the baobab and pachypodium trees in the Strange Worlds area, the visitor is presented with a unique
collection of plants. The landform of the conservatories draws inspiration from Mediterranean landscapes and evokes the language of dry, sun-baked hillsides punctuated with rocky terraces and stony outcrops, and the intimate bond between land, geology, vegetation and cultivation. At
the centre of this permanent display is the Flower Field – a vast carpet of flowers in bloom which will change seasonally.

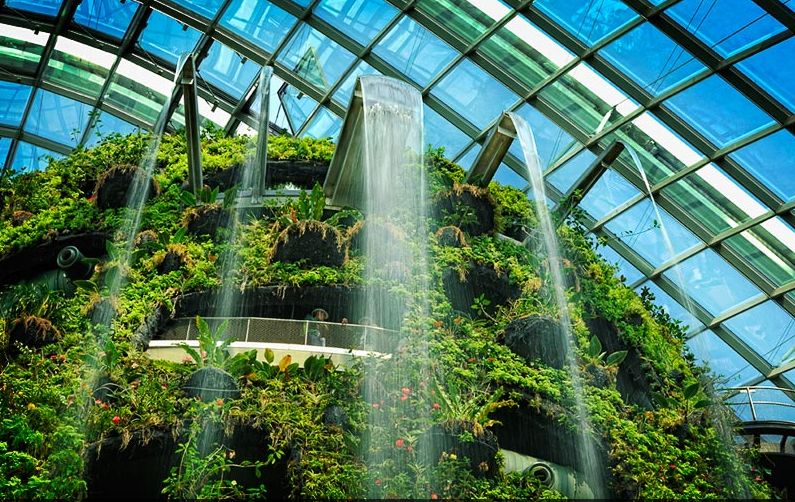

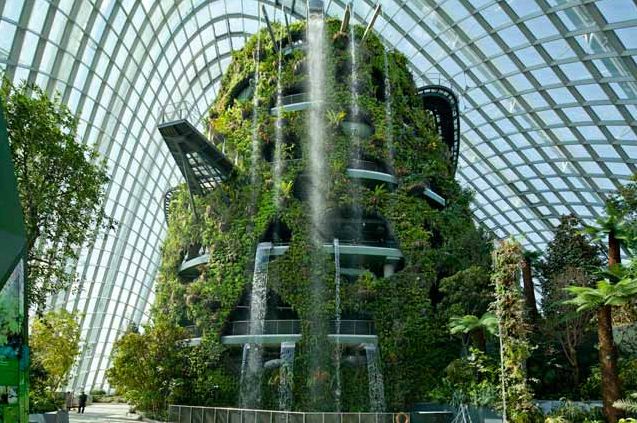

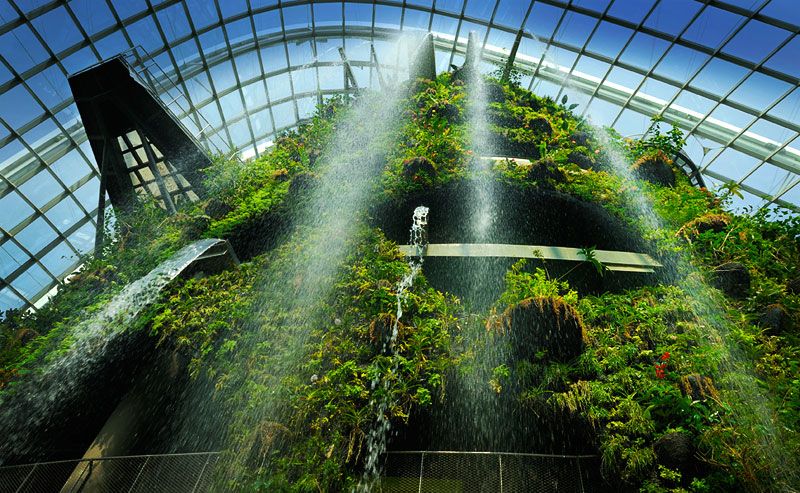

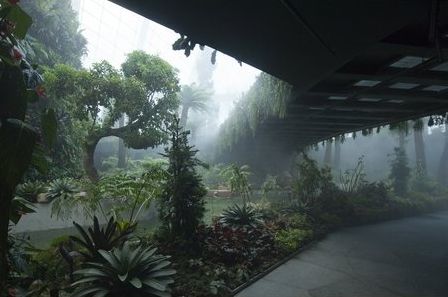

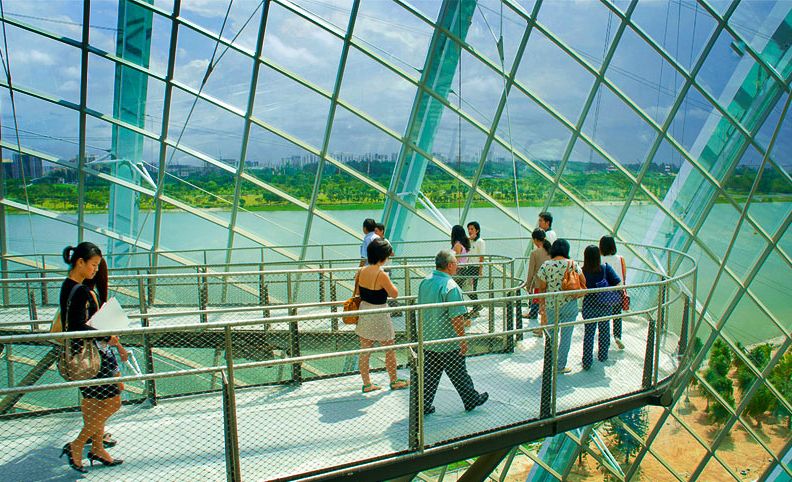

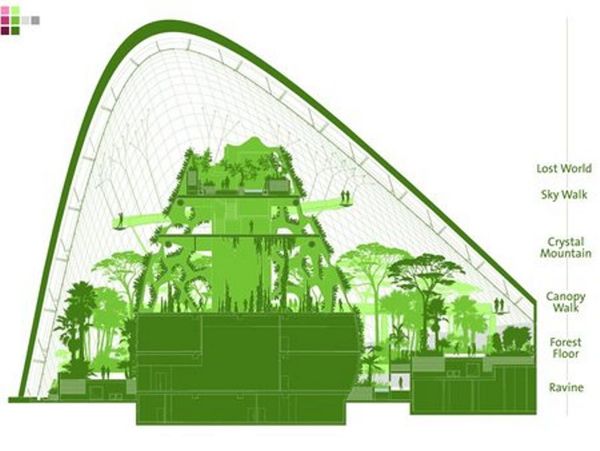

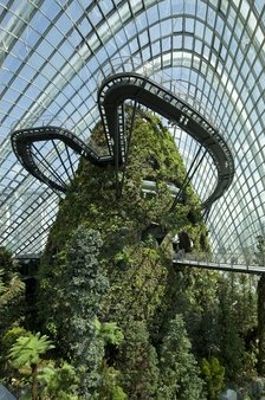

The Cloud Forest highlights the relationship between plants and the planet, showing how the warming of the cool tropical cloud forests will threaten biodiversity. With a smaller footprint but greater height than Flower Dome, it has at its heart a planted ‘Mountain’ from which a 35m high waterfall drops. Visitors can experience the forest at different levels from a Cloud Walk, a Canopy Walk and the Forest Floor and Ravine Walks. Within the mountain, a series of exhibition spaces describe the impact of incremental temperature change and the sustainable technologies employed across the gardens, while at its foot is the Ravine – a series of darkened secret
gardens surrounded in mist.

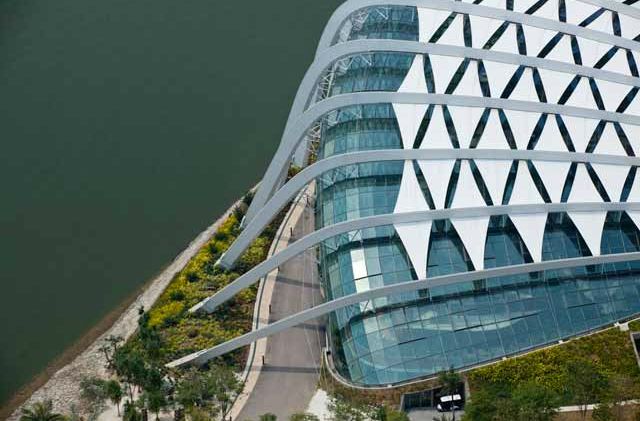

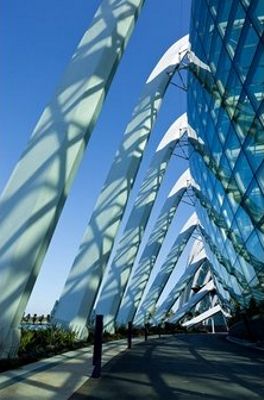

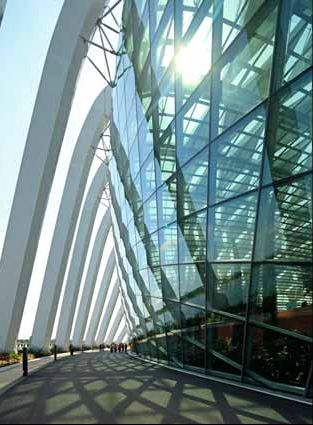

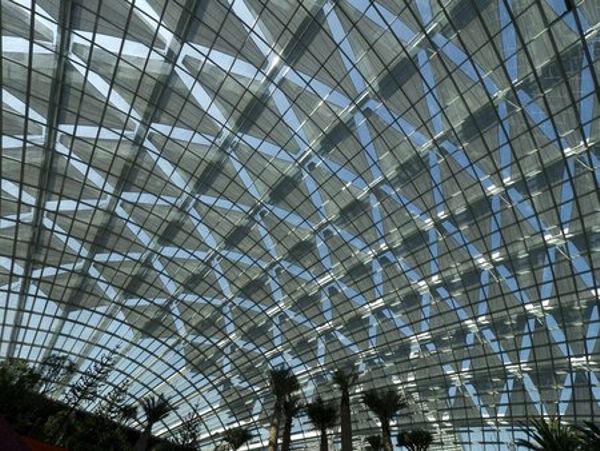

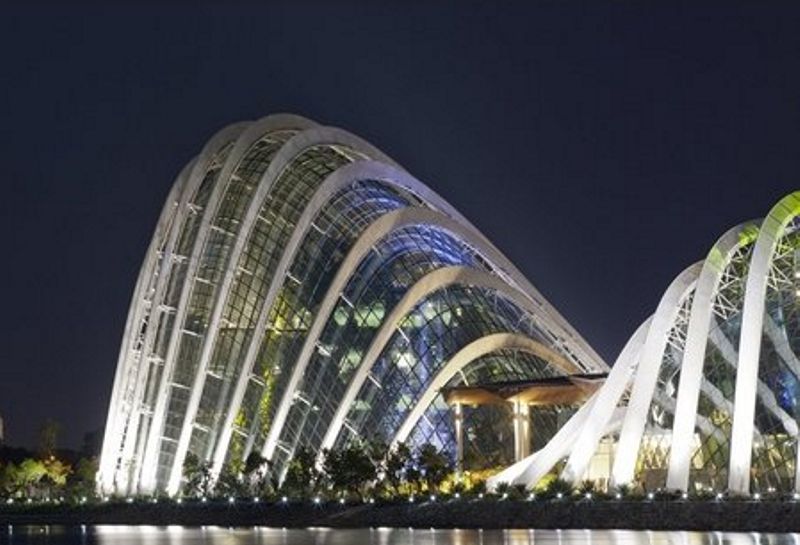

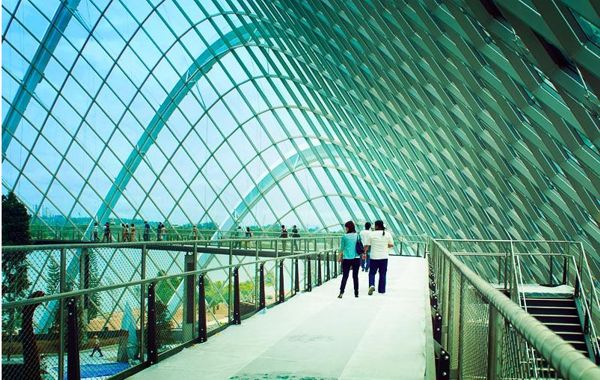

Both conservatories have a dual system structure of gridshell and arches to permit as much light as possible through to the planted displays within. The gridshell portion is very fragile (like an egg) and is designed to only support its own weight and the weight of the glass. Wind loads are resisted by the arches that are set away from the surface of the envelope and arranged radially in line with the geometry of the gridshell. This structural combination creates a distinctive,
lightweight clear-span structure which, in the shallower slope of the Flower Dome, is thought to be among the largest gridshells in the world.

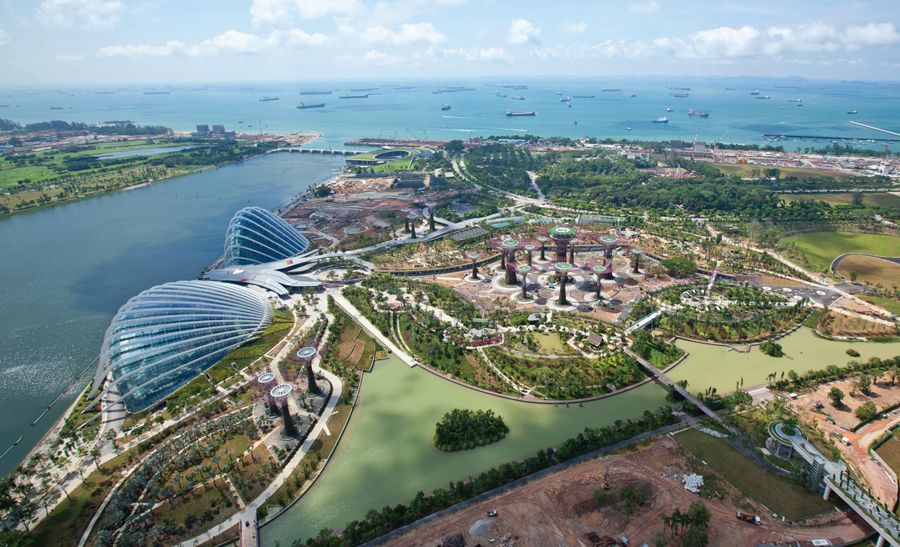

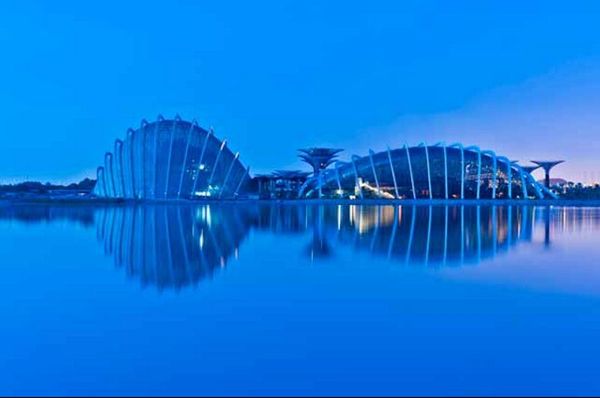

Bay South Garden is built on reclaimed land, a low lying, flat area on the shore of Marina Bay. In the absence of a natural landscape the conservatories are envisaged as landforms, a pair of artificial landmarks that prominently address the bay and the skyscrapers of dense urban districts
around it.

Wilkinson Eyre Architects
London - United Kingdom
This project was won in an international design competition as part of a team led by landscape architects Grant Associates.

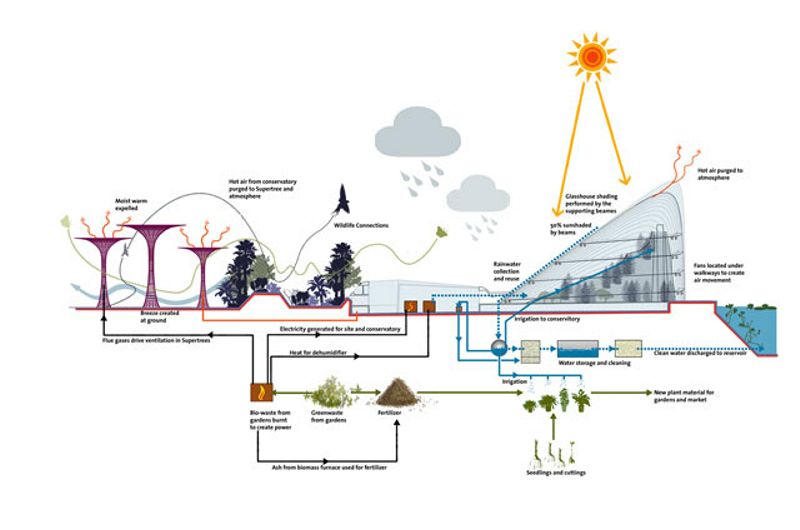

The masterplan for Marina South forms part of Singapore’s new Gardens by the Bay development and draws from the distinctive flora of the region to create a new destination in the city. It has been designed as a series of distinct ecosystems which will enable the gardens to function with maximum environmental efficiency.
The garden at Marina South is home to some of the site’s most spectacular structures, including a grove of ‘supertrees’ reaching almost 40 metres in height and two cooled conservatories, which are among the largest climate-controlled glasshouses in the world. The cool-dry conservatory explores issues related to plants and people and incorporates a spectacular flower field with programmed changing displays.
In contrast, the cool-moist conservatory focuses on plants and the planet, with a dramatic internal ‘mountain’ and waterfall demonstrating subjects such as biodiversity. The structures form a new landmark for the city, enjoying views back across Marina Channel to Singapore’s city centre.

DETAILS
Location: Singapore
Client: National Parks Board Singapore
Architect: Wilkinson Eyre Architects
Landscape Architect: Grant Associates
Structural Engineers: Atelier One
Environmental Engineers: Atelier Ten
Exhibition Design: Land Design Studio
Quantity Surveyors: Davis Langdon Seah
Appointment: September 2006
Opened: June 2012
Conservatories Value: £250 million
